SKF LAGD125/HP2 Grease, Lubrications and Oils

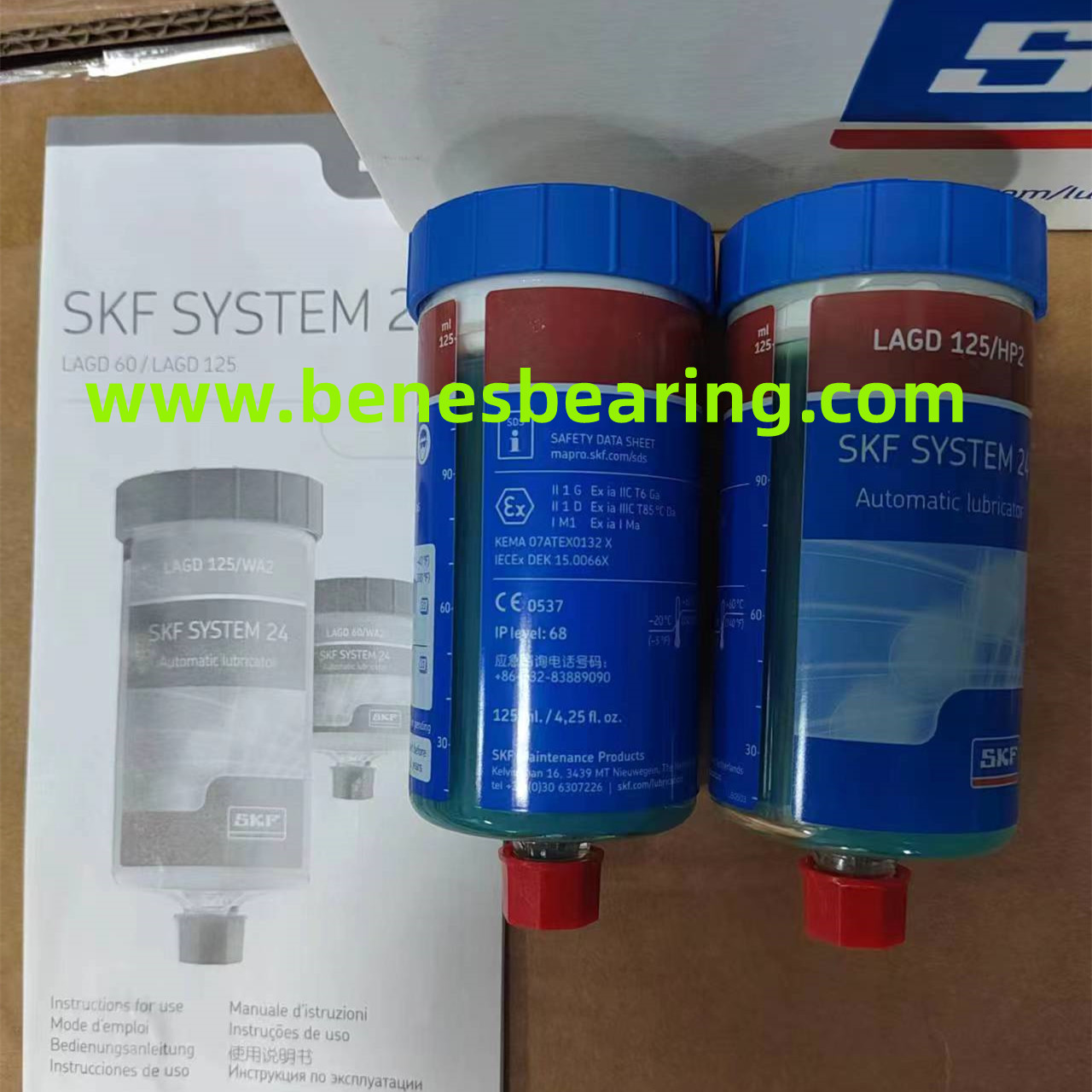

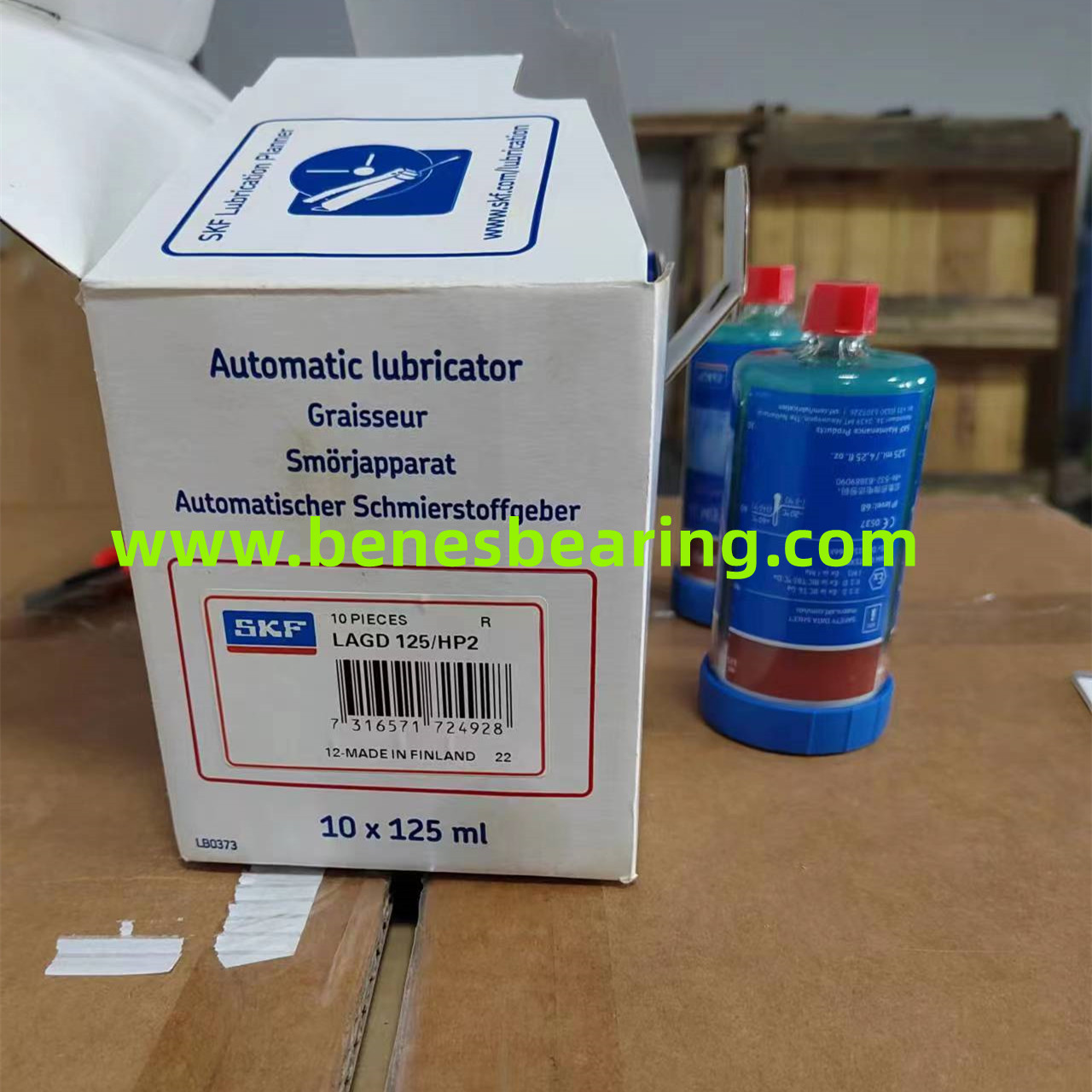

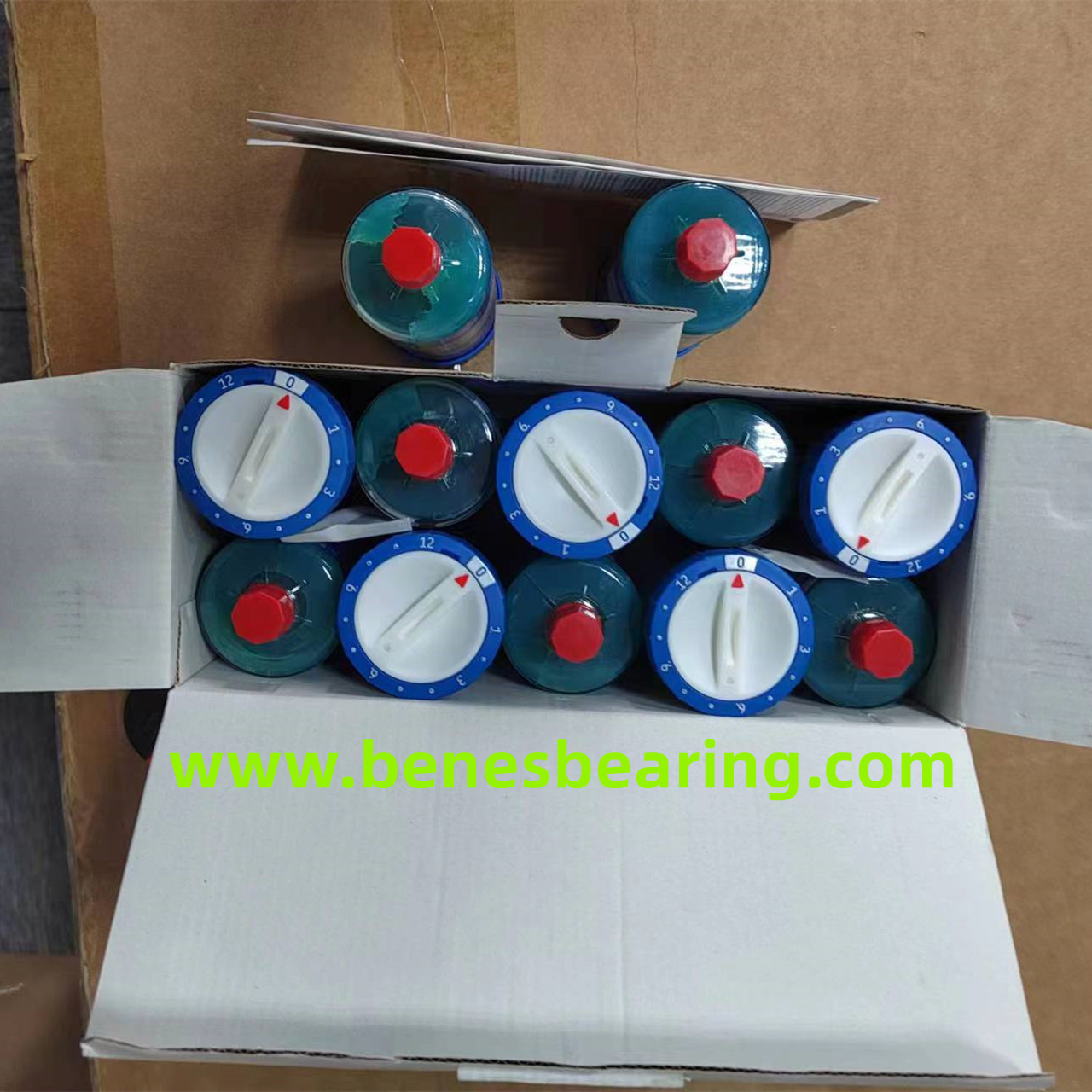

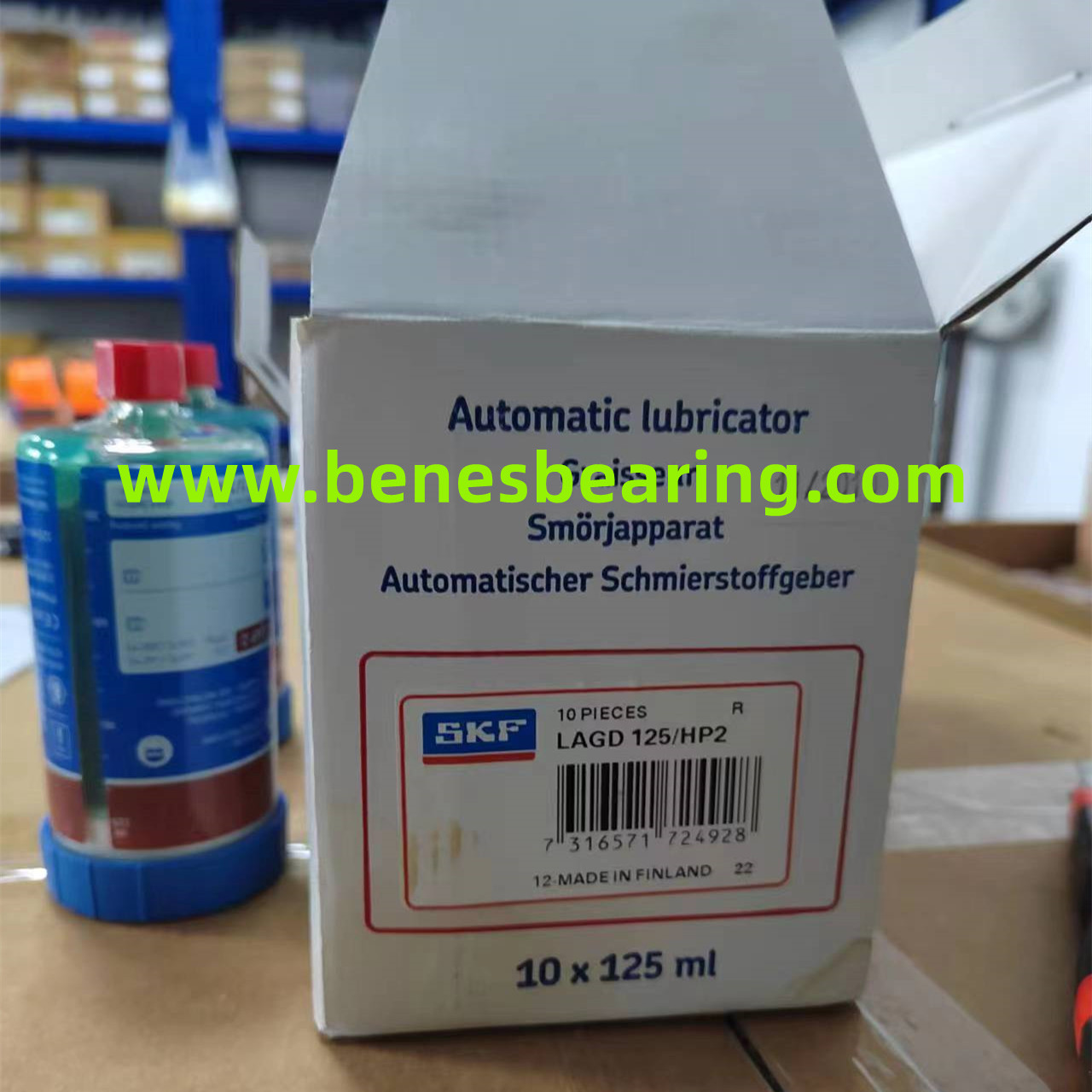

SKF SYSTEM 24 gas driven single point automatic lubricator
LAGD 125/HQ2 is filled with SKF LGHQ 2 grease for high temperatures and high speeds recommended for electric motors, fans and pumps. Our gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.
SKF SYSTEM 24 gas driven single point automatic lubricator
LAGD 125/HQ2 is filled with SKF LGHQ 2 grease for high temperatures and high speeds recommended for electric motors, fans and pumps. Our gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.
- Flexible dispense rate from 1 to 12 months
- ATEX zone 0 approved
- Transparent lubricant container allows visual inspection of dispense rate
- Compact size, suitable for restrictive areas
- Improved reliability and optimized maintenance
Dimensions
| Lubricant quantity | 125 ml |
Performance
| Nominal emptying time | Adjustable, 1–12 months |
| Maximum pressure | 5 bar |
| Maximum feed line length | 0.3 m |
| Product weight | 0.19 kg |
| Degree of protection (IP) | IP 68 |
Properties
| Lubricant | LGHQ 2 |
| Lubricant description | Wide temperature range electric motor bearing grease |
| Lubricant operating temperature range | –30 to +160 °C |
| Ambient temperature range | -20 – 60 °C |
| Recommended applications | Electric motors;Industrial fans;Water pumps;Vertical shaft applications |
| Drive mechanism | Gas cell producing inert gas |
| Connecting thread | R 1/4 |
| Intrinsically safe approval | II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma |
| Power source | Gas cell |
| Recommended storage temperature | 20 °C |
