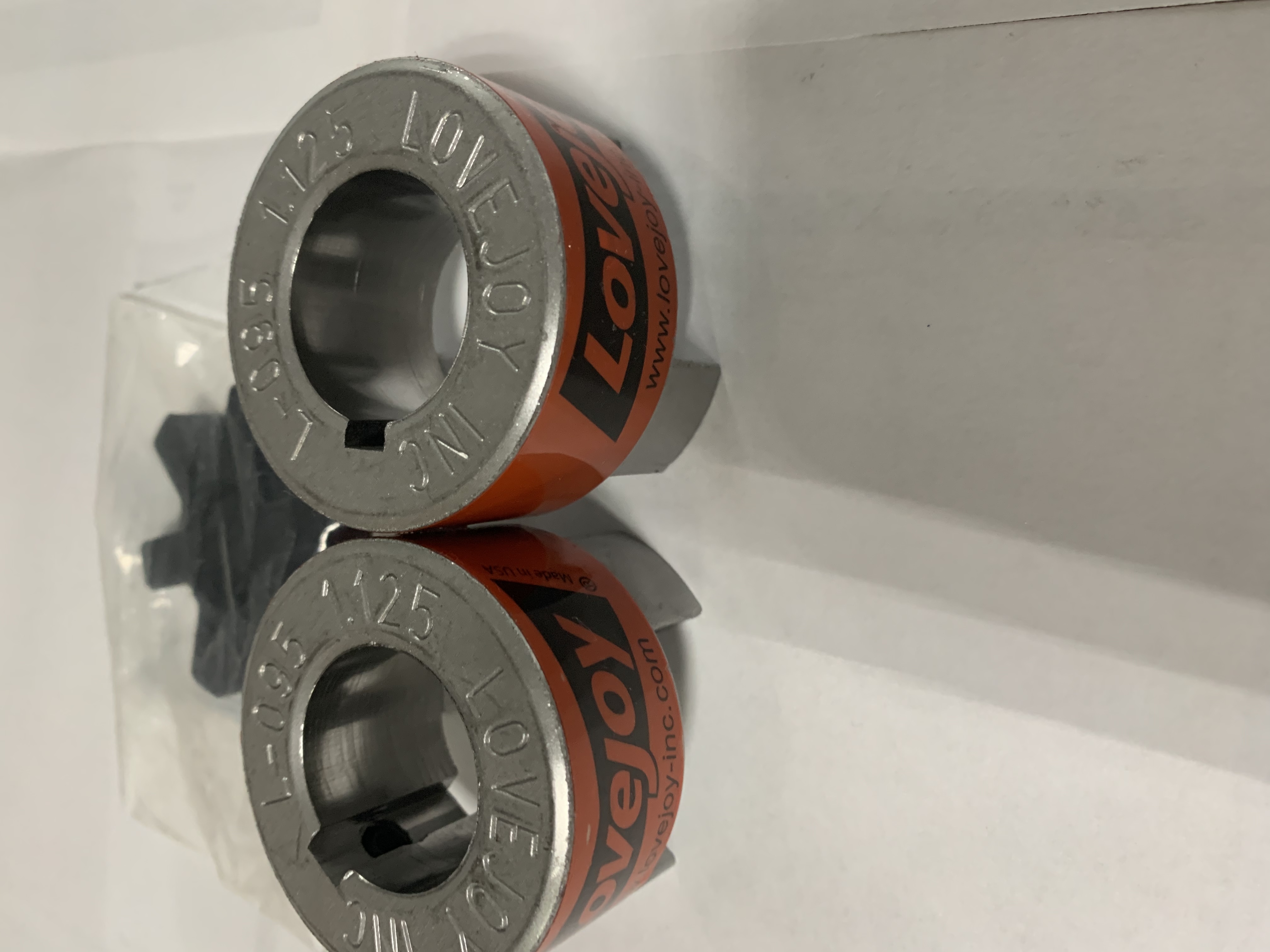

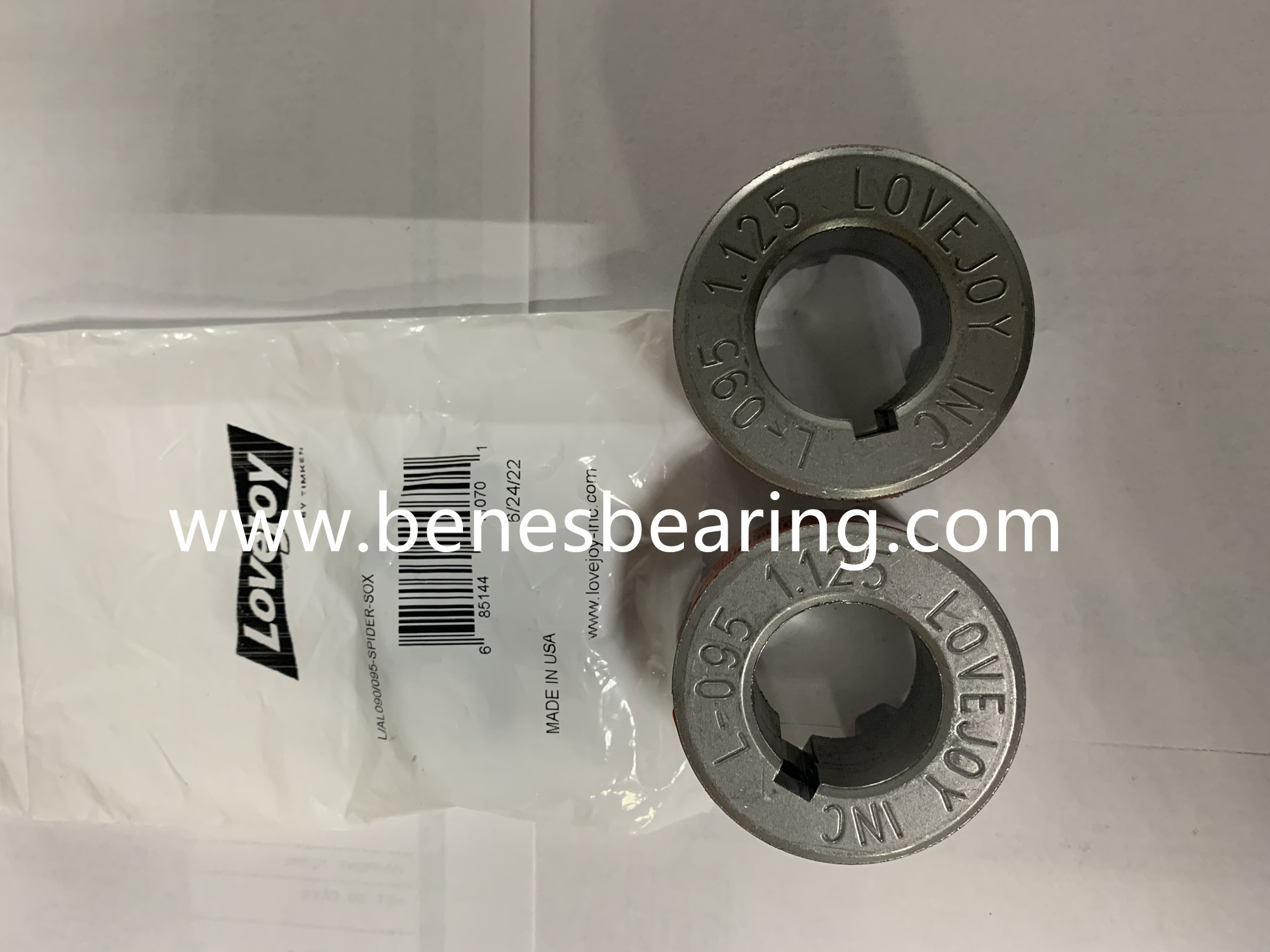

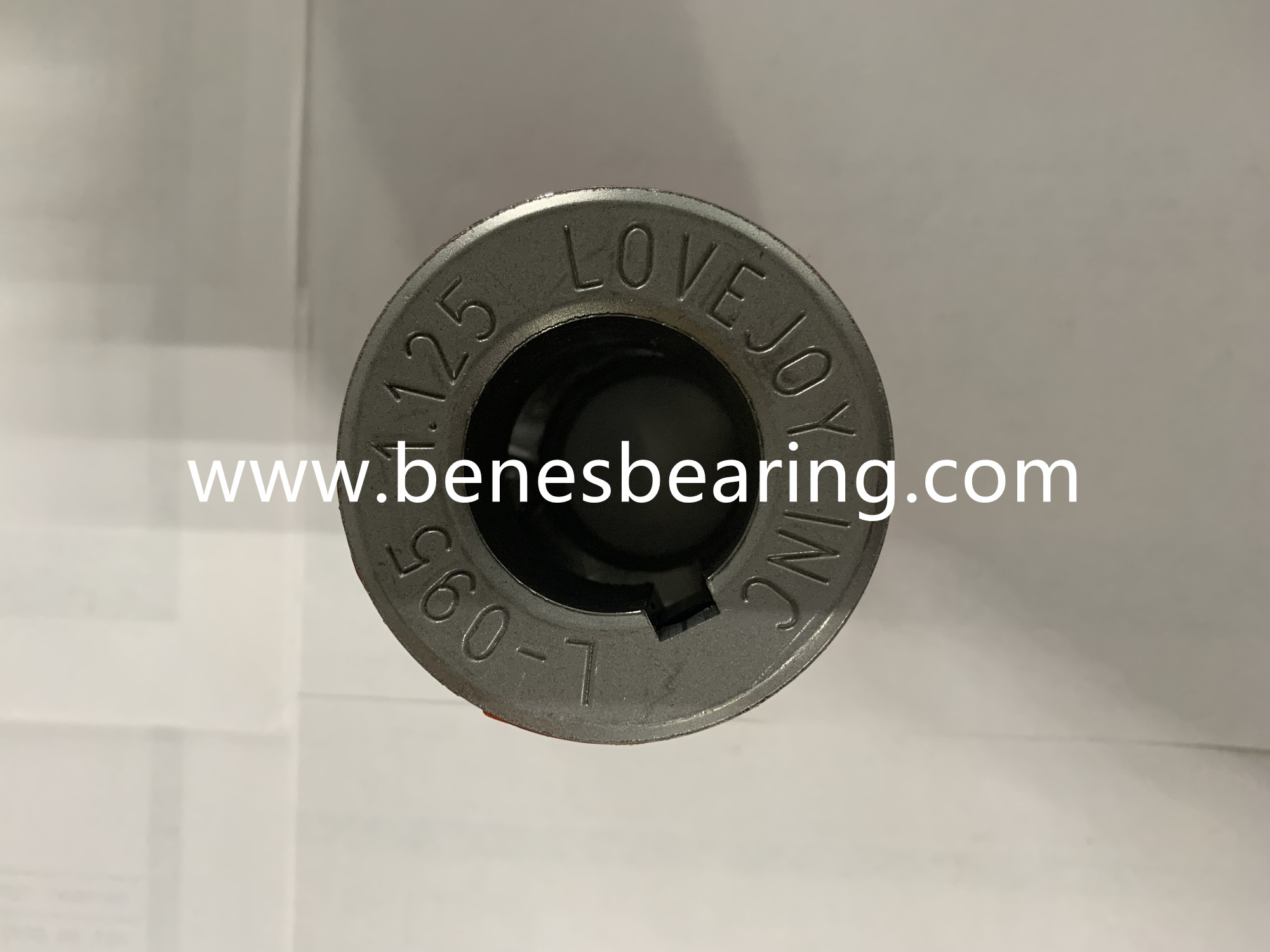

LOVEJOY L095 Coupling
- Industry’s standard shaft coupling
- Accommodates for angular and parallel shaft misalignment
- Fail-safe (will still perform if elastomeric “spider” fails)
- No metal to metal contact
- Resistant to oil, dirt, sand, moisture, and grease
- Industry’s largest available selection from stock
OVERVIEW
- Coupling offers standard shaft-to-shaft connection for general industrial-duty applications
- Standard L-Type coupling hub materials are either sintered iron (L035-L190) or cast iron (L225-L276)
- Accommodates for angular and parallel shaft misalignment
- Fail-safe (will still perform if elastomeric “spider” fails)
- No metal-to-metal contact
- Resistant to oil, dirt, sand, moisture, and grease
SPECIFICATIONS
| Coupling Size Code | L095 |
|---|---|
| Bore Type | Finished w/ Keyway & SS |
| Bore Diameter | 1.1250 in - 1-1/8 in |
| Jaw Type | Straight |
| Hub Material | Iron |
| Outside Diameter | 2.1100 in |
| Length Through Bore | 1.0000 in |
| Coupling Overall Length | 2.5100 in |
| Hub End Diameter | 2.11 in, 2.1 in |
| Torque Capacity | 561 in |
| Screw Clamp Type | Set Screw |
| Series | L |
