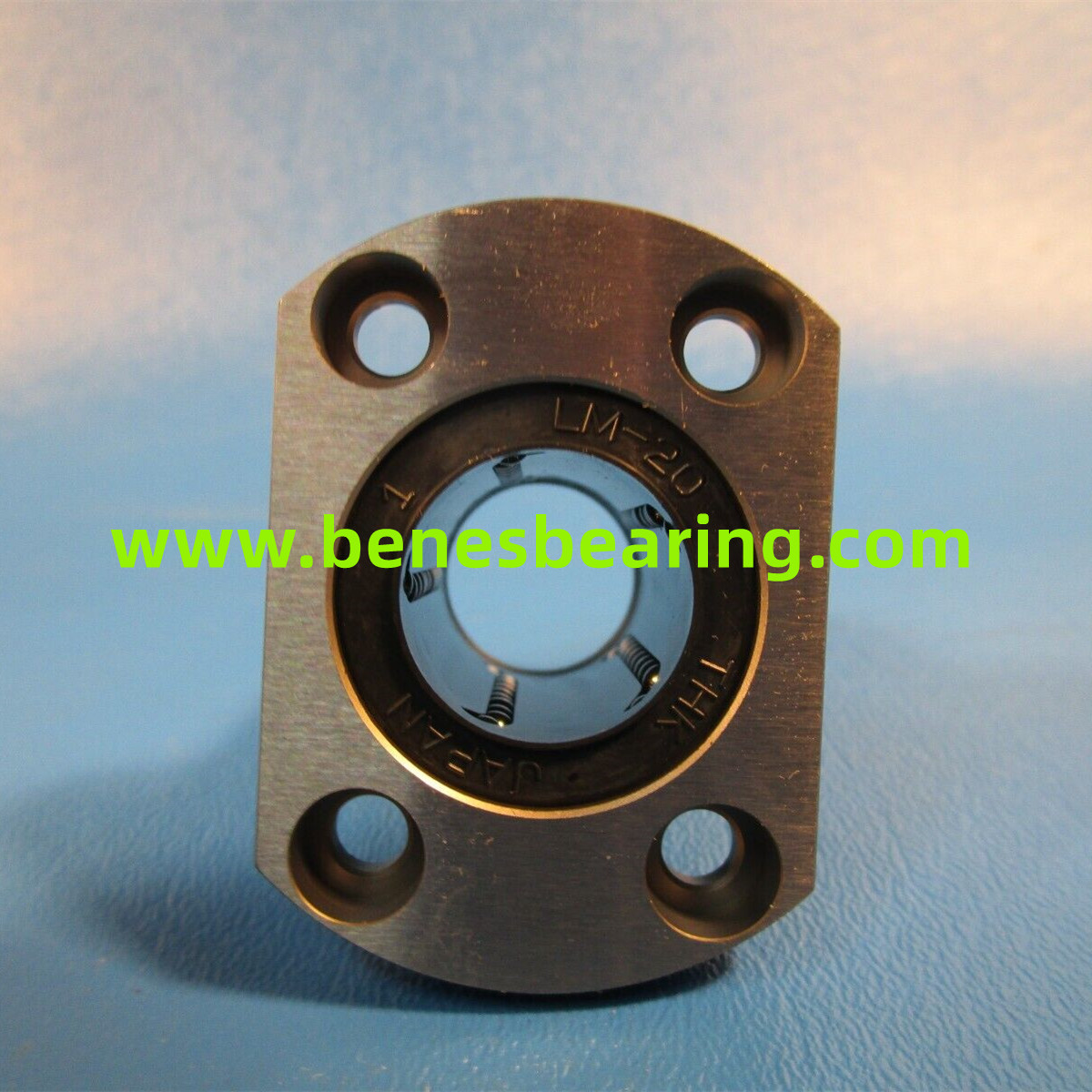

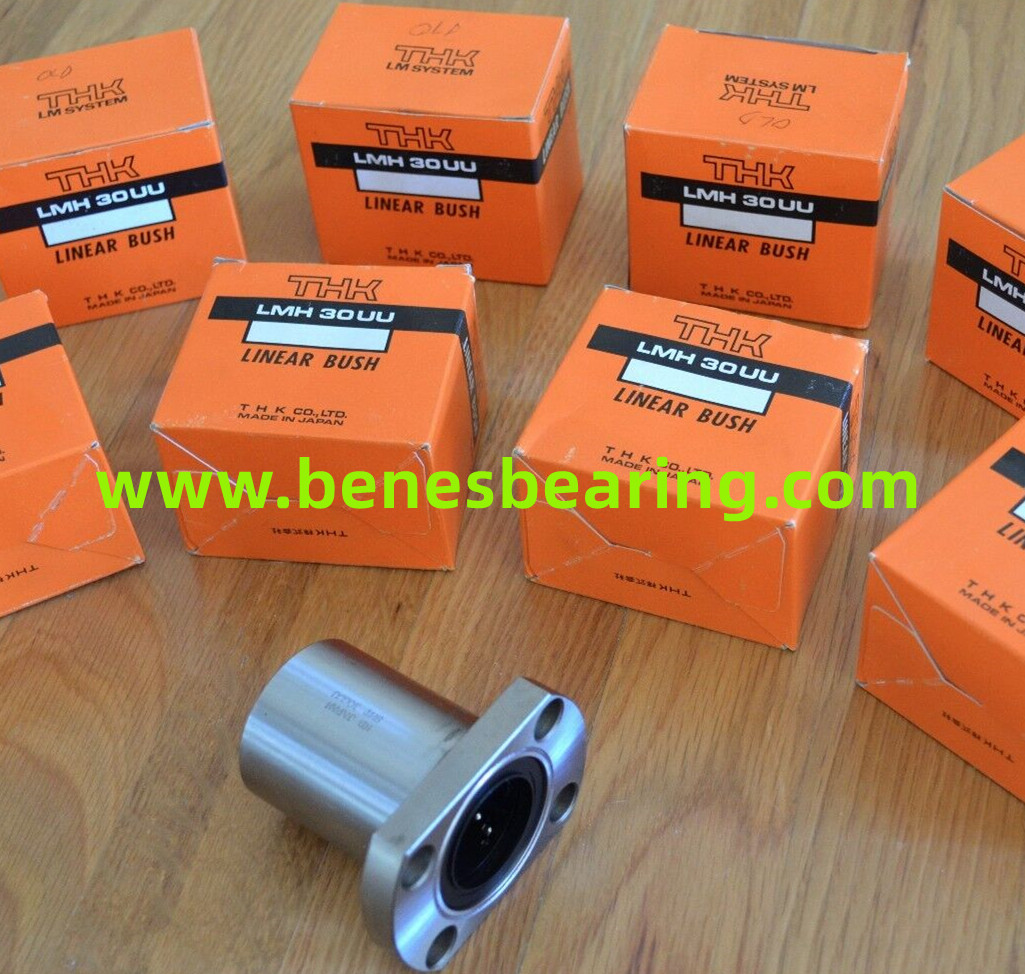

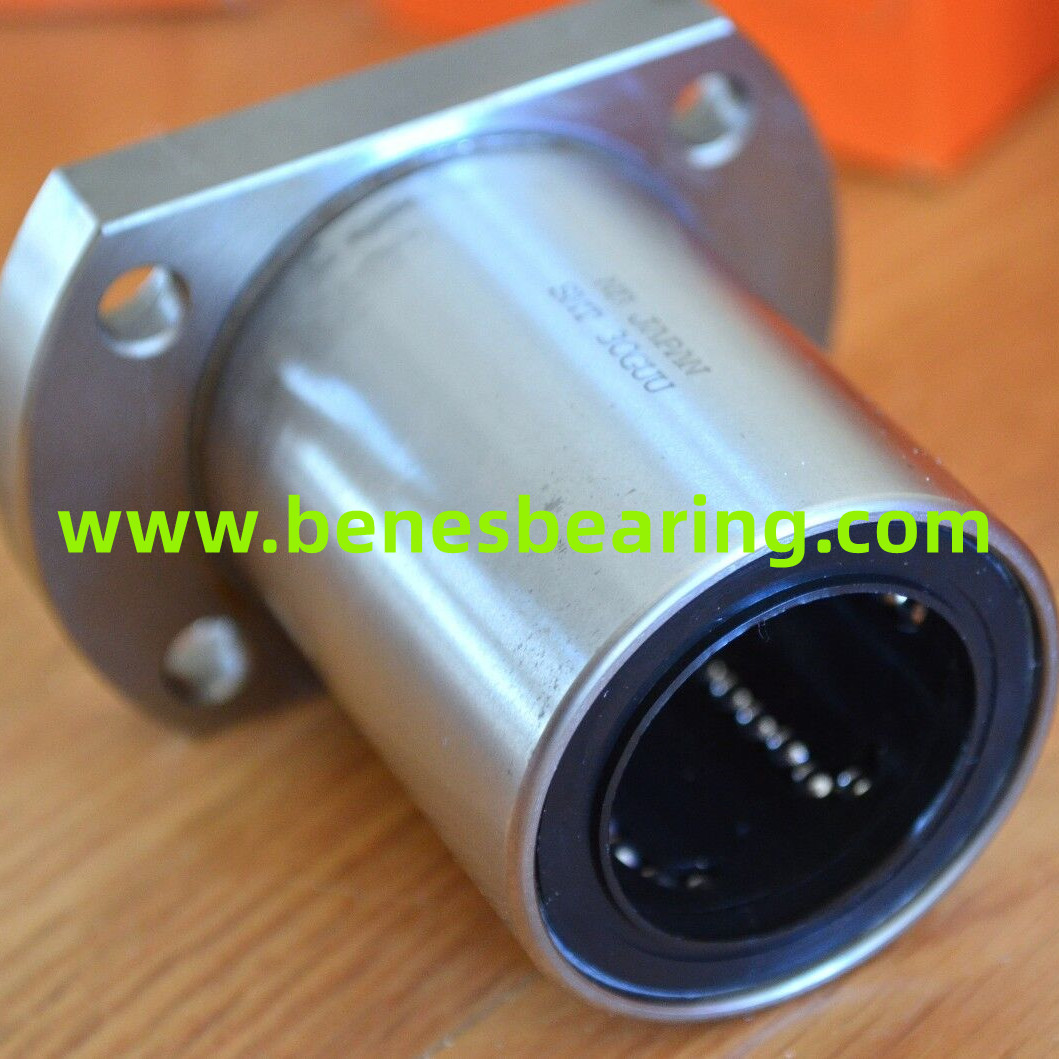

THK LMH 30UU 20UU Torque-Resistant Linear Bushings

THK LMH 30UU  20UU   Torque-Resistant Linear Bushings


• Technical data

dust protection seal		with seal
mass - g		351
basic load rating - dynamic c - n		1,570
eccentricity(max) - µm		15
mounting holed1xd2xh - mm		6.6x11x6.5
b - mm		49
k - mm		51
flange diameter - d1 - mm		74
overall length - l - mm		64
outer diameter - d - mm		45
inscribed bore diameter - dr - mm		30

for shaft o.d. (mm)		30
basic load rating - static c0 - n		2,750
radialclearancetolerance - µm		-9
flangeperpen-dicularity - µm		15
c - mm		35
h - mm		10
flange diameter - tolerance - mm		0-0.2
overall length - tolerance - mm		0-0.3
outer diameter - tolerance - mm		0-0.016
inscribed bore diameter - tolerance - mm		0-0.010
ball rows		6
