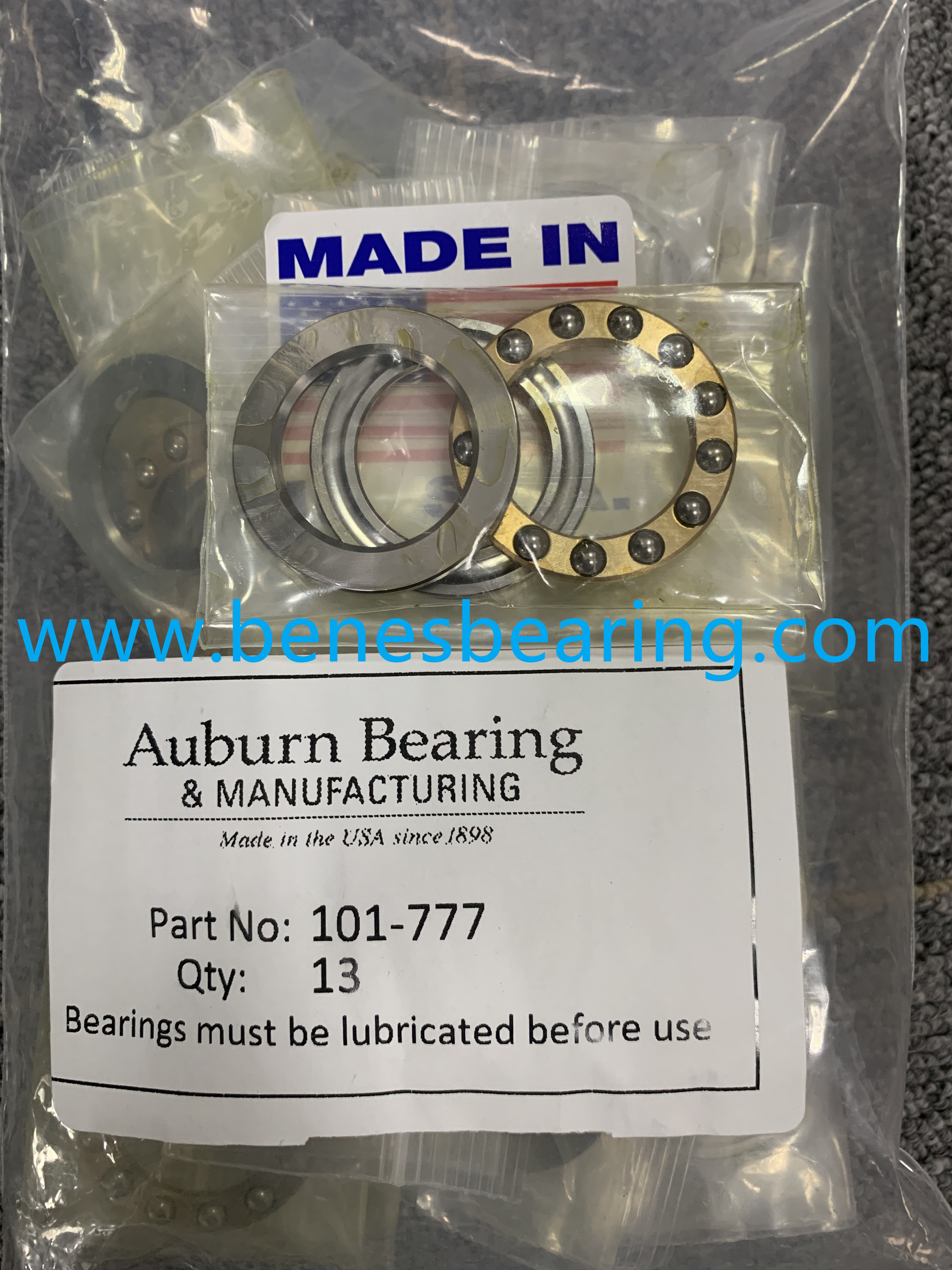

Auburn bearing 101-777

T-101 Thrust Ball Bearing Series

Auburn Open Style T-101 Thrust Ball Bearing with Full Ball Complement

The Auburn Open Style T-101 Thrust Ball Bearing is designed to make the best possible use of the limited amount of bearing space that may be available. T-101 consists of two hardened steel races with a full complement of balls.

When preloaded and installed so as to be held by the outside diameter B, the “V” grooved raceways enable this series to carry radial loads equal to 25% of its thrust load capacity, while decreasing the amount of friction created by a full contact round groove design. The open style design of this bearing will allow the maximum circulation of lubricating products.

The T-101 Thrust Ball Bearing is available in inch dimensions from 0.5″ through 5.313″ bore, 1.125″ through 9.25″ OD, and 0.625″ through 3″ height.
