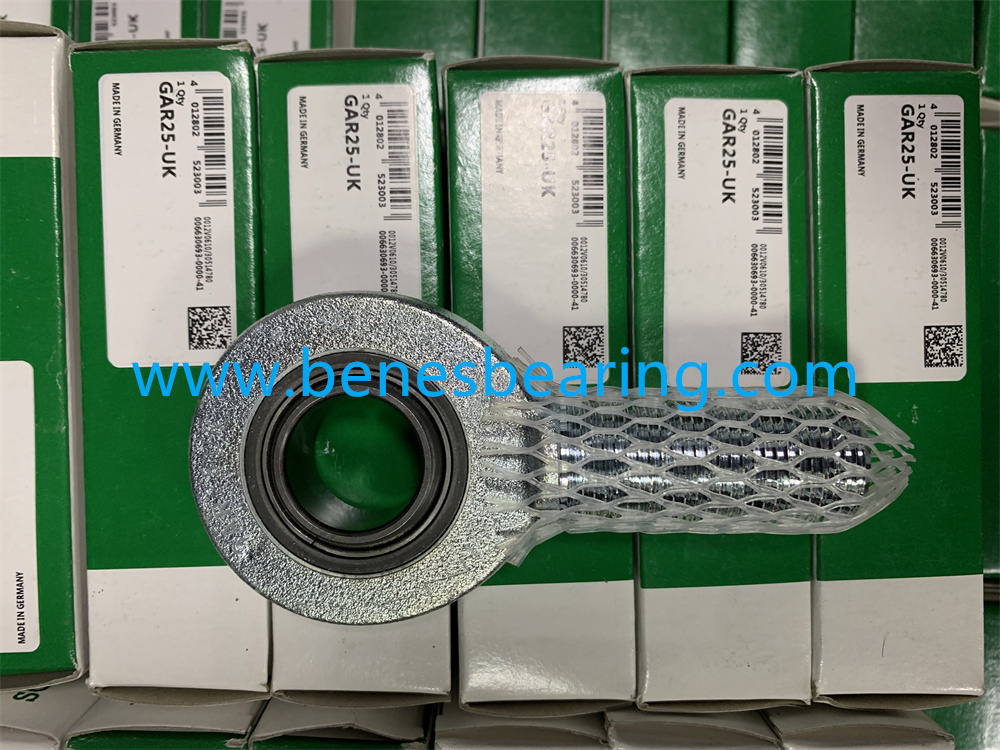

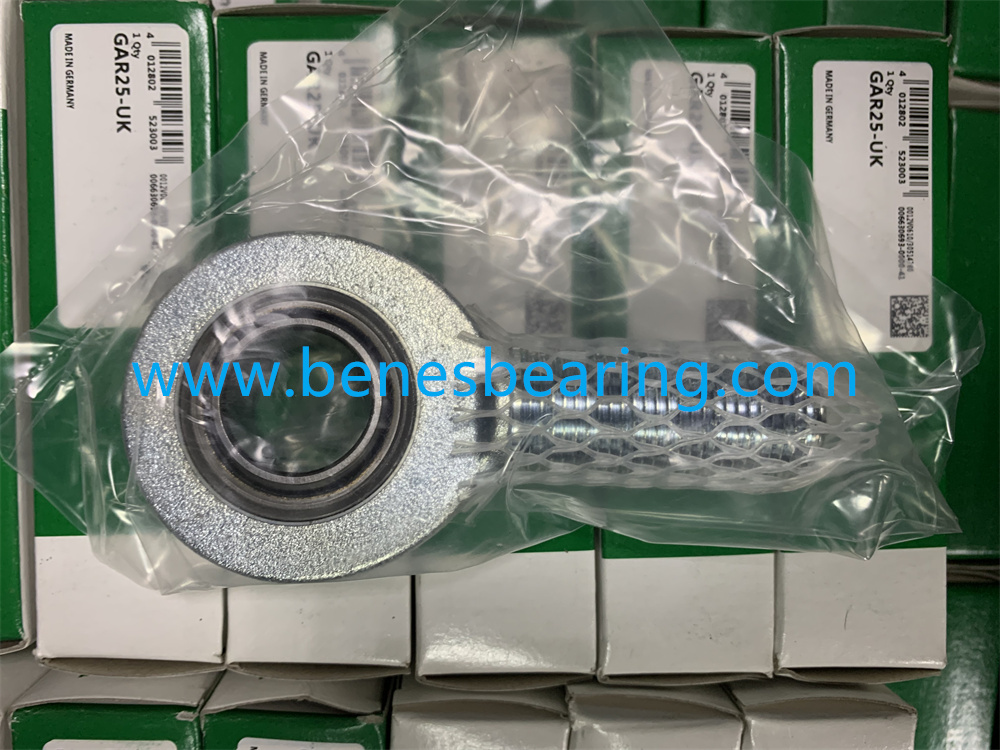

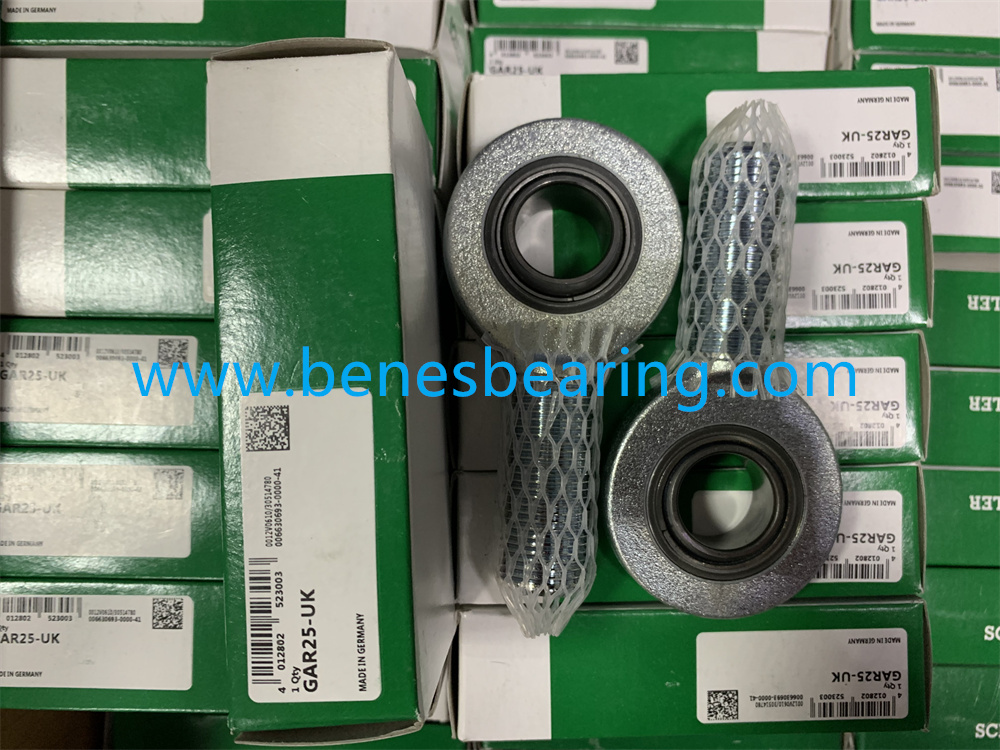

INA GAR25-UK Rod End GAR15-UK GAR17-UK GAR20-UK GAR30-UK GAR6-UK GAR8-UK
Main Dimensions & Performance Data
Mounting dimensions
Dimensions
Temperature range
Packaging & Shipping
1.industrial packing+industrial cartons+pallets
2.single brand box+brand cartons+pallets
3.follow customer's requests
A.Plastic Tubes or Single Boxes ( Usually 10pcs in one plastic tube for steel bearings);
B.Cartons ( No more than 30kg for one carton );
C. Pallet ( Usually more than 400kg totally will use pallet )
D. Delivery time :7-35 days ( by sea or by air )
Generally,We will choose the most suitable packing method for products. If you have any special requirements for packing, pleasecontact us in advance.
After Sales Service
In order to meet the increasing market demand, and better serve the customers, we has built a professional team composed of sales engineers to provide perfect pre-sales and after-sales services.
We provide consulting services for maintenance, procurement and design staff concerning the basic knowledge, selection, installation and removal, lubrication, maintenance and equipment management of imported bearings.
All these services are mean to reduce the installation errors, form good work and safety habits and improve the efficiency of maintenance personnel, thus achieving the best use effect and the maximum bearing life.
We also help users analyze the failure of the bearing, confirm the causes, provide solutions for this issue and give suggestions on precautionary measures.
FAQ
Q:What's your after-sales service and warranty?
A: We promise to bear the following responsibilities when defective products were found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we also customize OEM box and packing as your requirements.
Q:What's the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.
Q:Do you offer free samples?
A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight. We DO NOT offer free samples to end users.
Q:How to place order?
A: 1. Email us the model, brand and quantity,shipping way of bearings and we will quote our best price for you;
2. Proforma Invoice made and sent to you as the price agreed by both parts;
3. Deposit Payment after confirming the PI and we arrange production;
4. Balance paid before shipment or after copy of Bill of Loading.
Contact with us now!
Main Dimensions & Performance Data
| d | 25 mm | Bore diameter bearing |
| d2 | 64 mm | Outer eye diameter |
| D | 42 mm | Outside diameter bearing |
| l2 | 126 mm | Total length external thread rod |
| B | 20 mm | Width inner ring |
| Cr | 51.100 N | Basic dynamic load rating, radial |
| C0r | 105.000 N | Basic static load rating, radial |
| ≈m | 555,6 g | Weight |
Mounting dimensions
| r1smin | 0,6 mm | Edge Spacing |
Dimensions
| dK | 35,5 mm | Ball diameter |
| d1 | 29,3 mm | Outer flange diameter inner ring |
| d3 | M24x2 | Thread size |
| h | 94 mm | Shank Length External thread rod |
| C1 | 17 mm | Width of the rod end |
| α | 7 ° | Tilt angle |
| l1 | 53 mm | Thread length external thread |
| l7 | 32 mm | Distance drilling with/shaft start |
| Gr | 0 - 0,05 mm | Radial Clearance |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| dUT | -0,01 mm | Bore diameter bearing, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| BUT | -0,12 mm | Width inner ring, lower tolerance |
Temperature range
| Tmin | -50 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Packaging & Shipping
1.industrial packing+industrial cartons+pallets
2.single brand box+brand cartons+pallets
3.follow customer's requests
A.Plastic Tubes or Single Boxes ( Usually 10pcs in one plastic tube for steel bearings);
B.Cartons ( No more than 30kg for one carton );
C. Pallet ( Usually more than 400kg totally will use pallet )
D. Delivery time :7-35 days ( by sea or by air )
Generally,We will choose the most suitable packing method for products. If you have any special requirements for packing, pleasecontact us in advance.
After Sales Service
In order to meet the increasing market demand, and better serve the customers, we has built a professional team composed of sales engineers to provide perfect pre-sales and after-sales services.
We provide consulting services for maintenance, procurement and design staff concerning the basic knowledge, selection, installation and removal, lubrication, maintenance and equipment management of imported bearings.
All these services are mean to reduce the installation errors, form good work and safety habits and improve the efficiency of maintenance personnel, thus achieving the best use effect and the maximum bearing life.
We also help users analyze the failure of the bearing, confirm the causes, provide solutions for this issue and give suggestions on precautionary measures.
FAQ
Q:What's your after-sales service and warranty?
A: We promise to bear the following responsibilities when defective products were found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we also customize OEM box and packing as your requirements.
Q:What's the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.
Q:Do you offer free samples?
A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight. We DO NOT offer free samples to end users.
Q:How to place order?
A: 1. Email us the model, brand and quantity,shipping way of bearings and we will quote our best price for you;
2. Proforma Invoice made and sent to you as the price agreed by both parts;
3. Deposit Payment after confirming the PI and we arrange production;
4. Balance paid before shipment or after copy of Bill of Loading.
Contact with us now!
