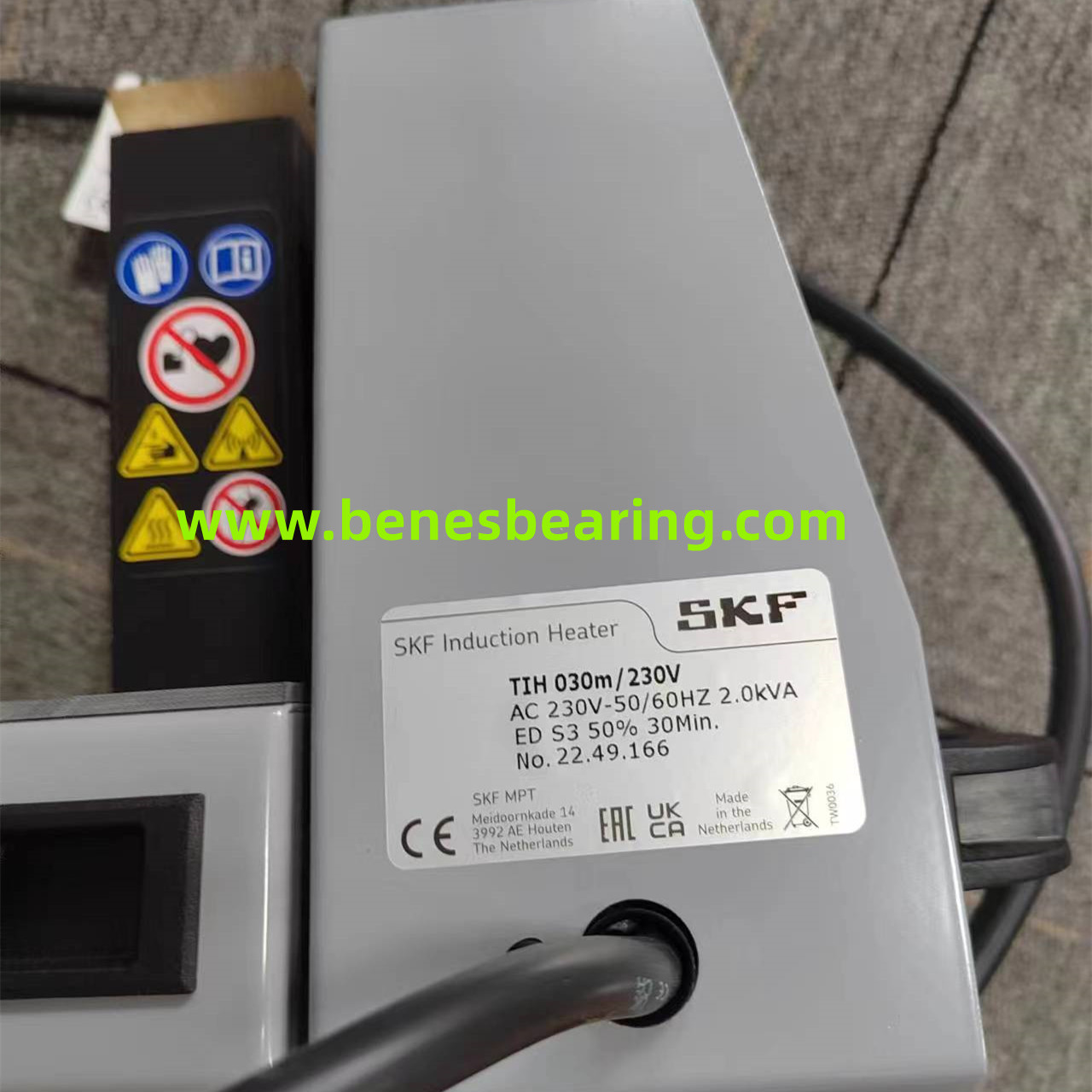

TIH 030M/230V

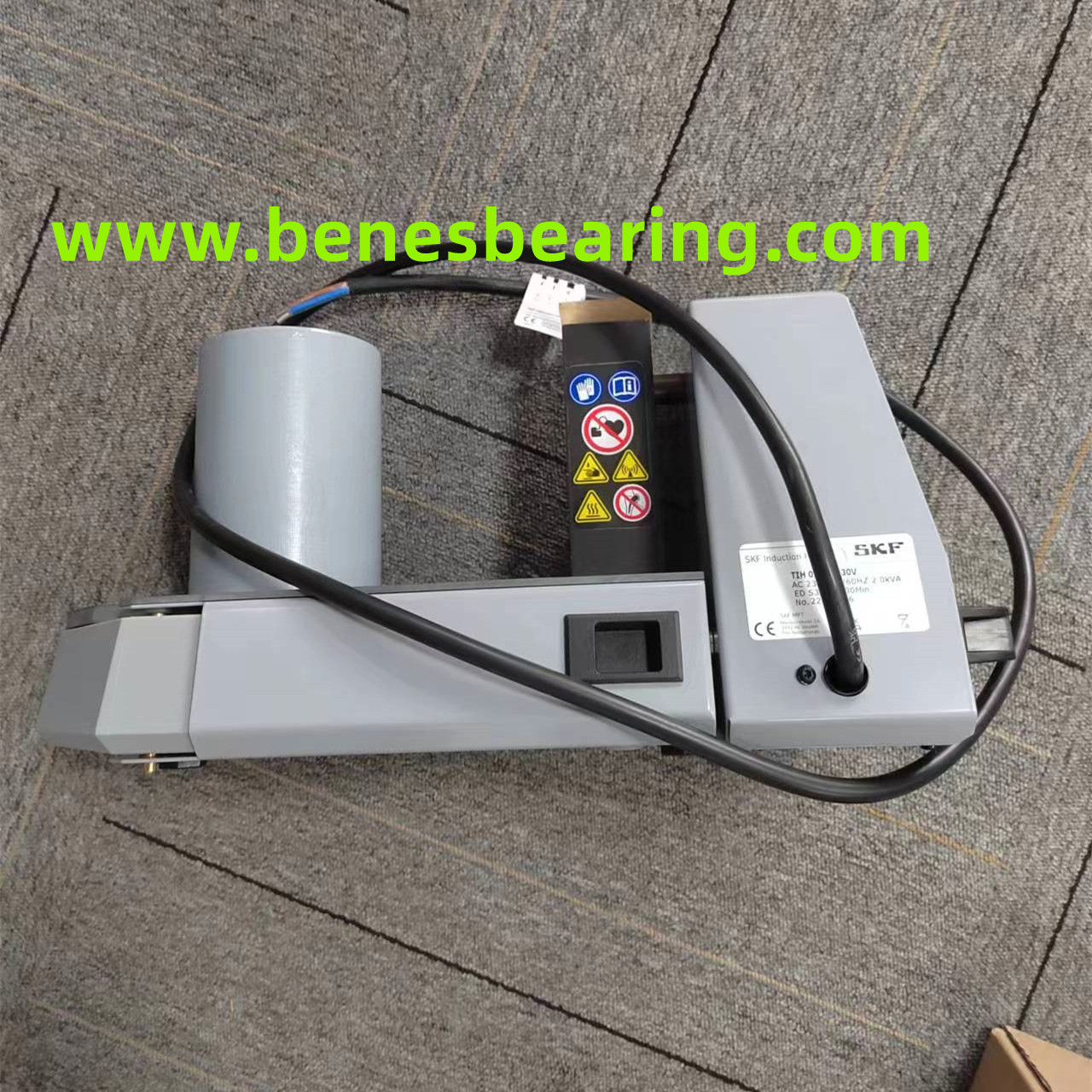

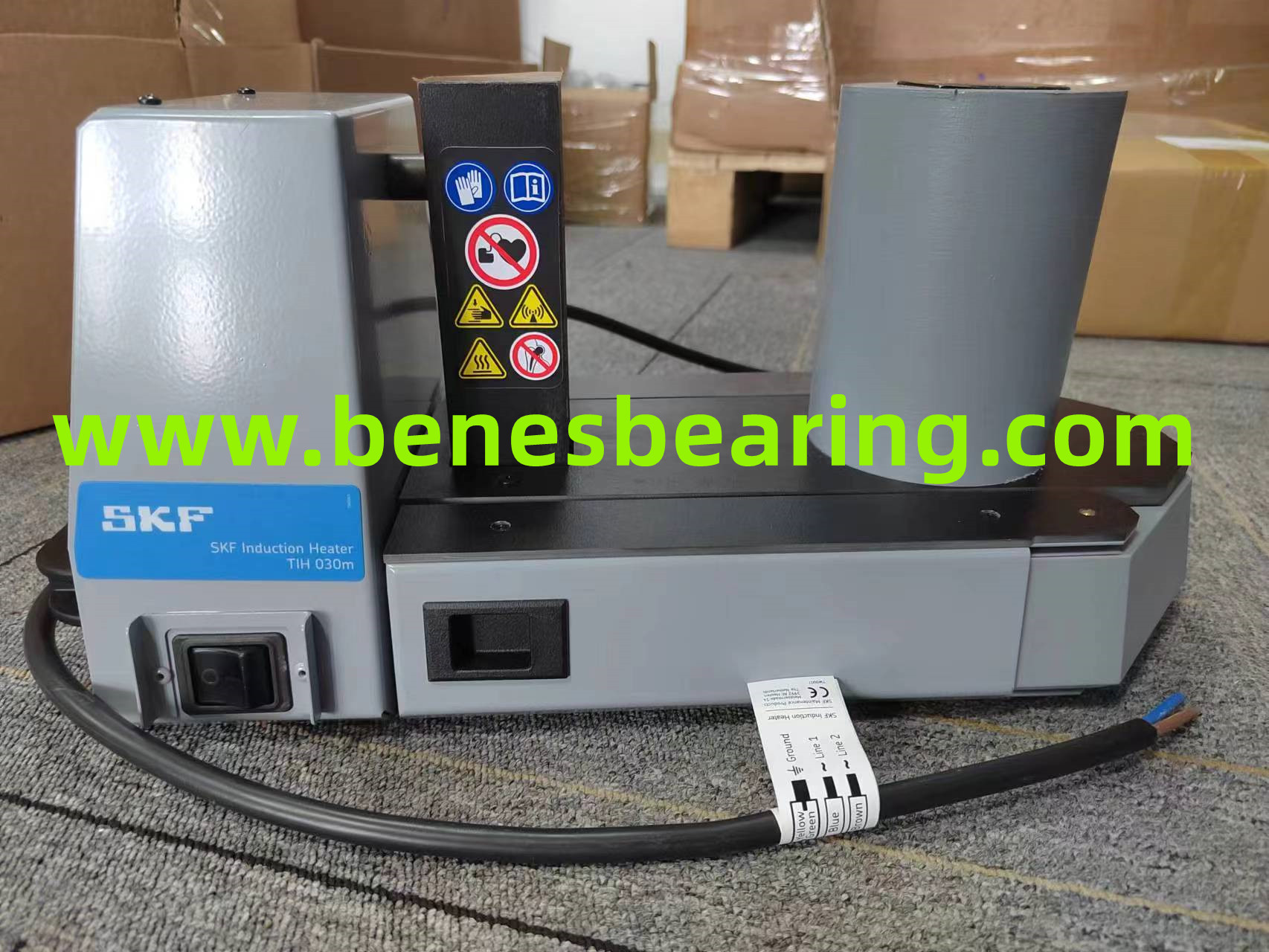

SKF Induction Heater TIH 030M (230V version)The SKF TIH 030M is a small induction heater and is designed for the hot mounting of bearings. This compact heater is ideal for use on workbenches, yet it can be easily carried for on-site applications. Supplied with three yokes and foldable support arms, the heater is capable of heating bearings with a bore diameters of 20 mm or more and with a maximum weight of 40 kg.
- Easy and safe to use with automatic temperature control or time controlled heating
- Automatic demagnetization reduces risk of bearing contamination
- Suitable for non-bearing applications for workpieces weighing up to 20 kg
- Automatic temperature hold function to keep the bearing hot after completion of the heating cycle
Dimensions
| Workpiece bore diameter | 20 to 300 mm |
| Operating area height | 135 mm |
| Operating area width | 100 mm |
| Coil diameter | 95 mm |
| Dimensions (W x L x H) | 195 x 450 x 210 mm |
| Total product weight | 27 kg |
Performance
| Heating performance example (bearing, weight, temperature, time) | 23136 CC/W33, 28 kg, 110 °C, 20 min |
| Maximum power consumption | 2 kVA |
Properties
| Maximum workpiece weight | 40 kg |
| Maximum heating temperature | 250 °C |
| Voltage | 220 – 240 V |
| Voltage frequency | 50 – 60 Hz |
| Heating temperature control | 0 to 250 °C |
| Colour | Light grey, black |
| Heating temperature steps | 1 °C |
| Housing material | Steel; Glass fibre filled polyamide |
| Heating time control | 0.1 - 60 minutes min |
| Heating time steps | 0.1 min |

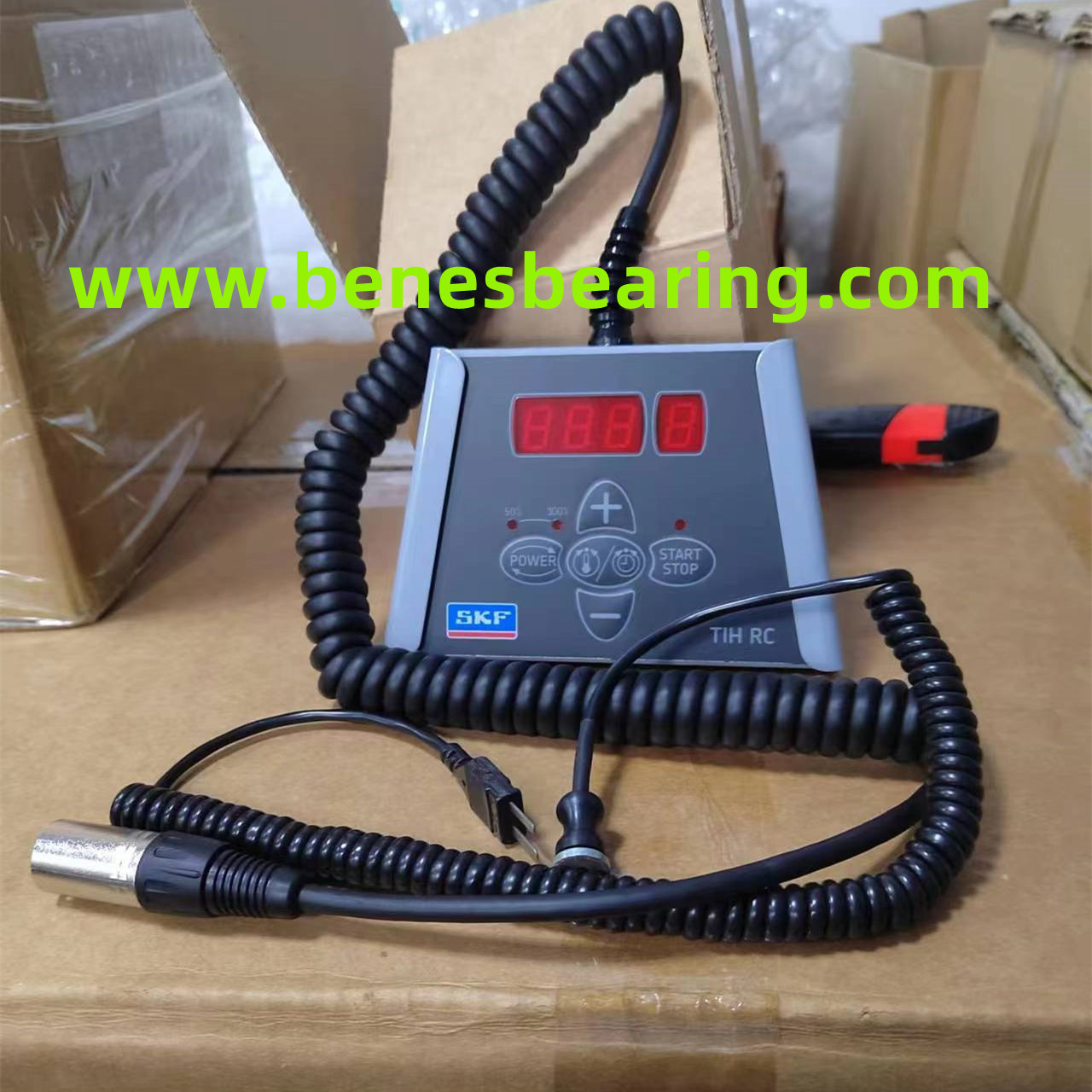

| Remote control panel (wired) | Yes, with LED display |
| Thermometer mode | Yes |
| Time mode | Yes |
| Demagnetisation after heating (according SKF norms) | < 2 A/cm A/cm |
| Error guiding codes | Yes |
| Thermal overload protection | Yes |
| Bearing support arms | Yes, foldable |
| Yoke storage | Yes, internal |
| Main yoke type | Loose yoke |
| Cooling fan | No |
