INA RNA69/22-XL needle roller bearing

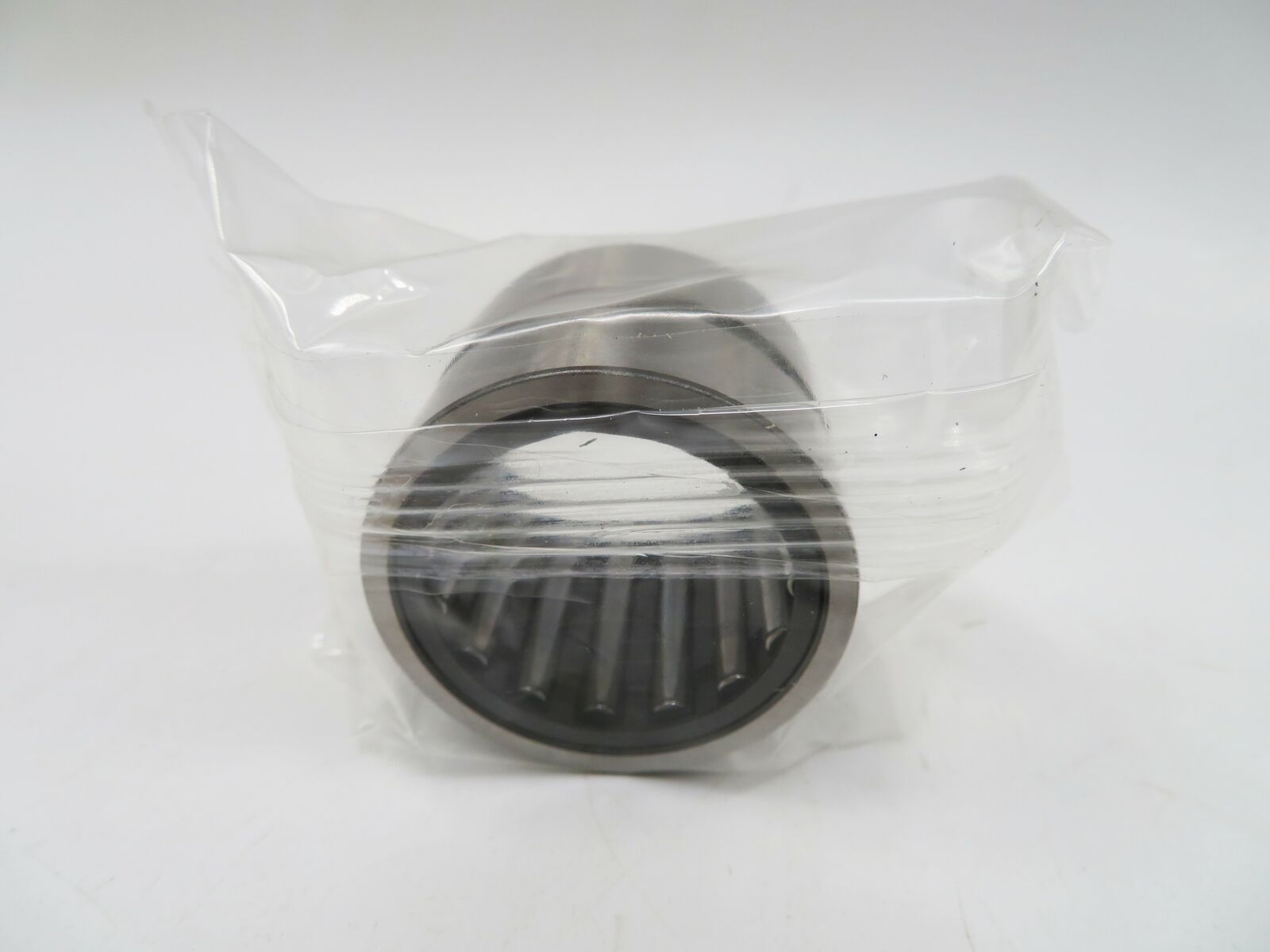

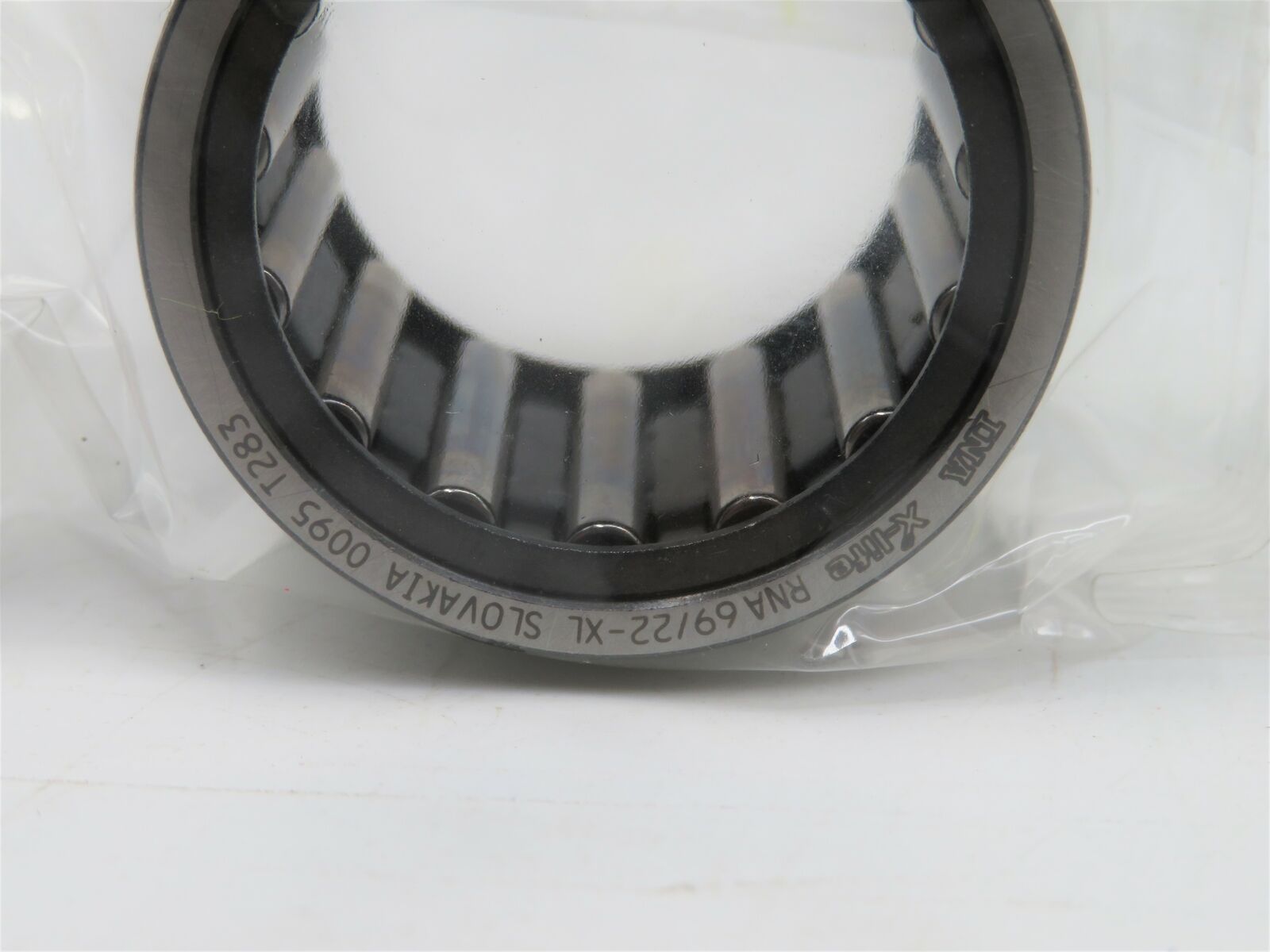

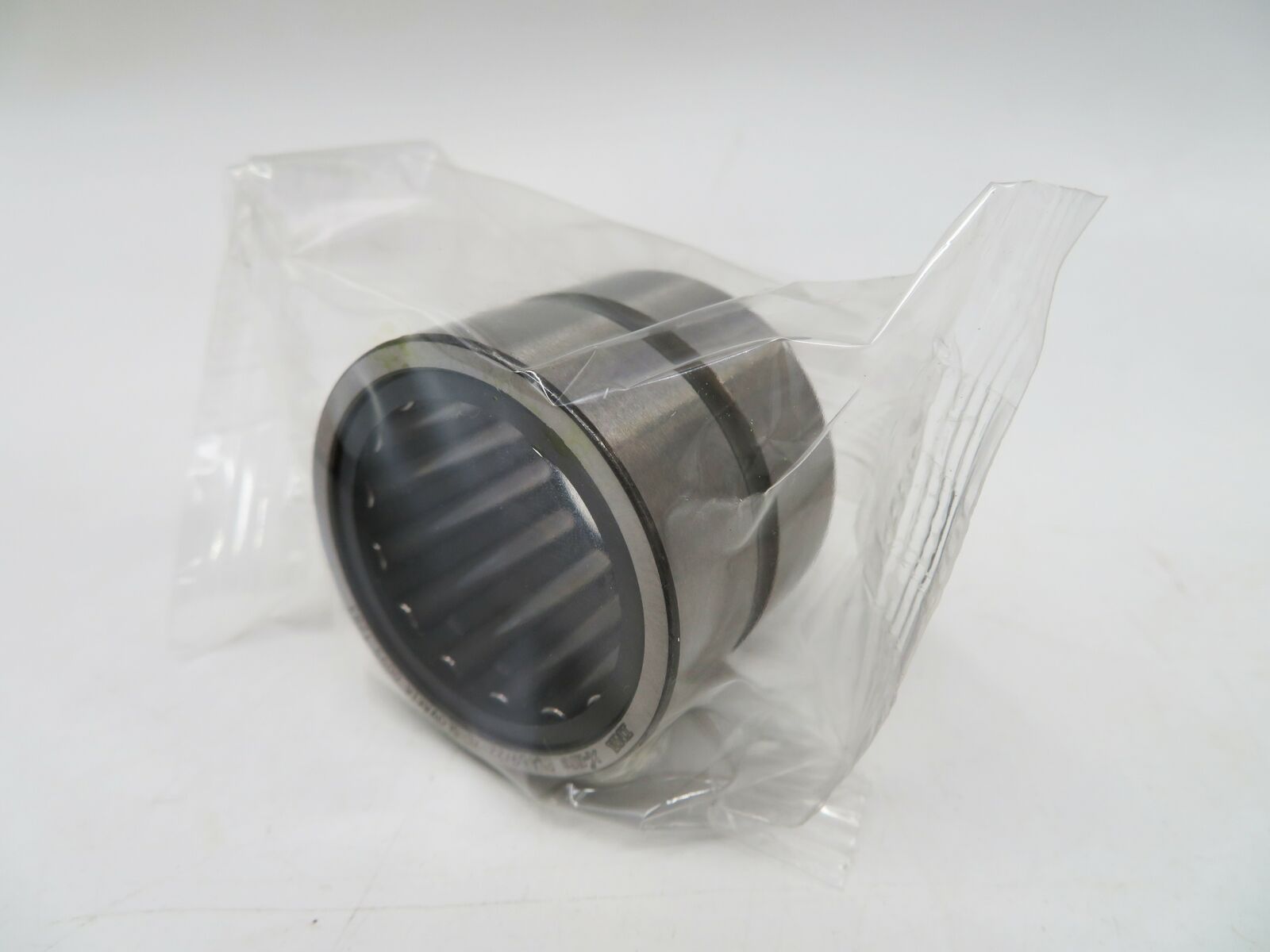

The RNA69/22-XL is a Standard Duty Open Type, Single Row Machined Needle Roller Bearing with a lubrication groove and oil hole in the Outer Ring. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 28X39X30mm.
Main Dimensions & Performance Data
Dimensions
Temperature range
The RNA69/22-XL is a Standard Duty Open Type, Single Row Machined Needle Roller Bearing with a lubrication groove and oil hole in the Outer Ring. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 28X39X30mm.
Main Dimensions & Performance Data
| Fw | 28 mm | Under roller diameter |
| D | 39 mm | Outside diameter |
| B | 30 mm | Width |
| Cr | 42,000 N | Basic dynamic load rating, radial |
| C0r | 55,000 N | Basic static load rating, radial |
| Cur | 10,000 N | Fatigue load limit, radial |
| nG | 15,300 1/min | Limiting speed |
| nG Grease | 9,200 1/min | Limiting speed for grease lubrication |
| nϑr | 8,400 1/min | Reference speed |
| ≈m | 90.3 g | Weight |
Dimensions
| rmin | 0.3 mm | Minimum chamfer dimension |
| C | 30 mm | Width, outer ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
