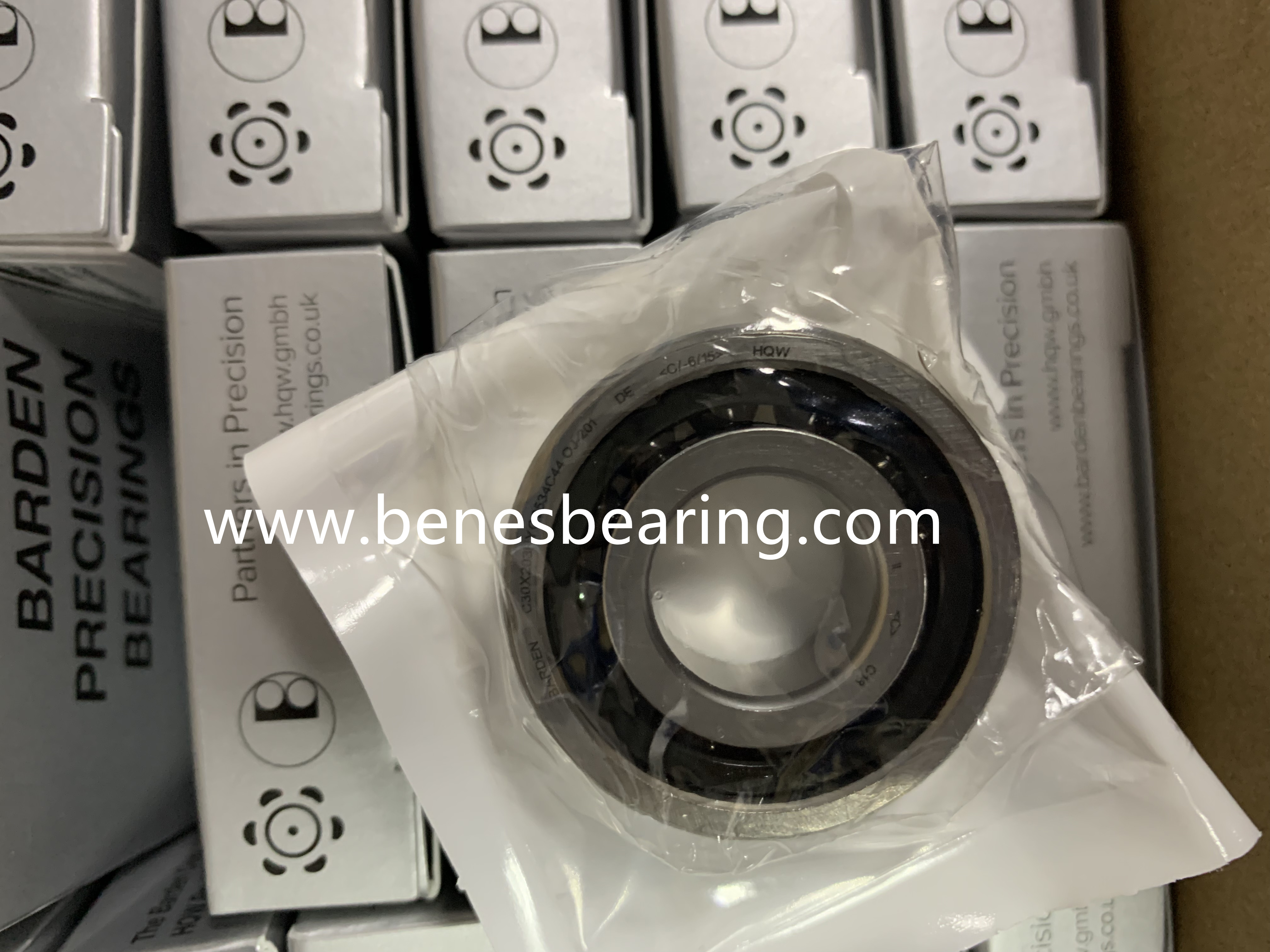

BARDEN C30X 203HY BALL BEARING

Designation: C30X203HY971

Type

Open

Dimensions [mm]

Bore (d)
17.000
Outer Diameter (D)
40.000
Width (B)
12.000

Radii

r₁ Max
2.00
r₂ Max Non-Thrust Side
1.00

Material

Rings
X30CrMoN15-1
Balls
Ceramic
Cage
Phenolic
Closures
n/a

Cage Type

One-Piece Halo

Closures

n/a

Quality Standard

P4S

Contact Angle α [°]

15

Capacity [N]

Dynamic C
11144
Static C₀ Radial
5584

Limiting Speed [min^-1]

Oil
90000
Grease
63000

Preload F_va [N]

L
60.00
M
170.00
S
335.00

Axial Rigidity c_a [N/µm]

L
36.16
M
58.16
S
81.89

Unloading Force K_aE [N]

L
191.78
M
592.69
S
1257.38
