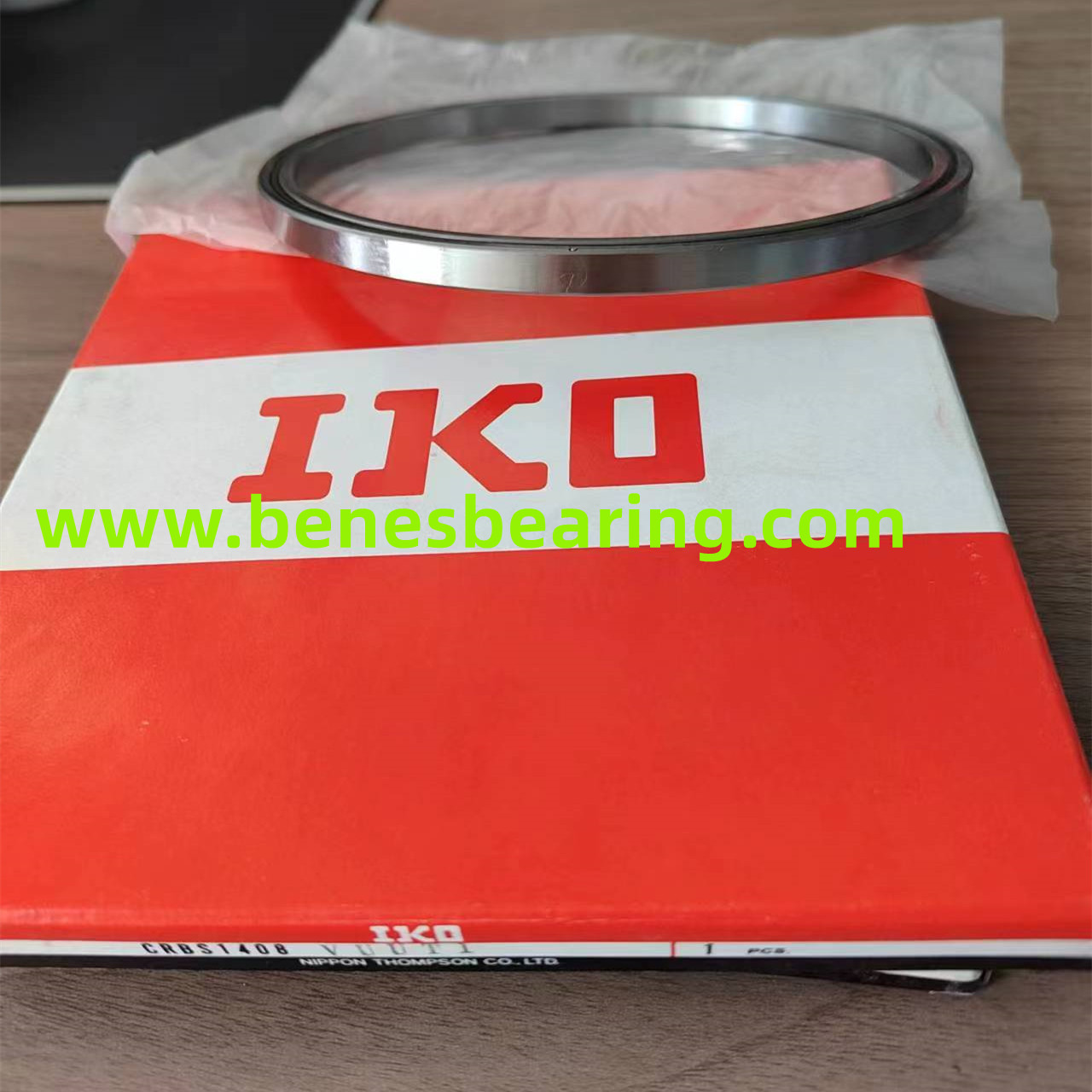

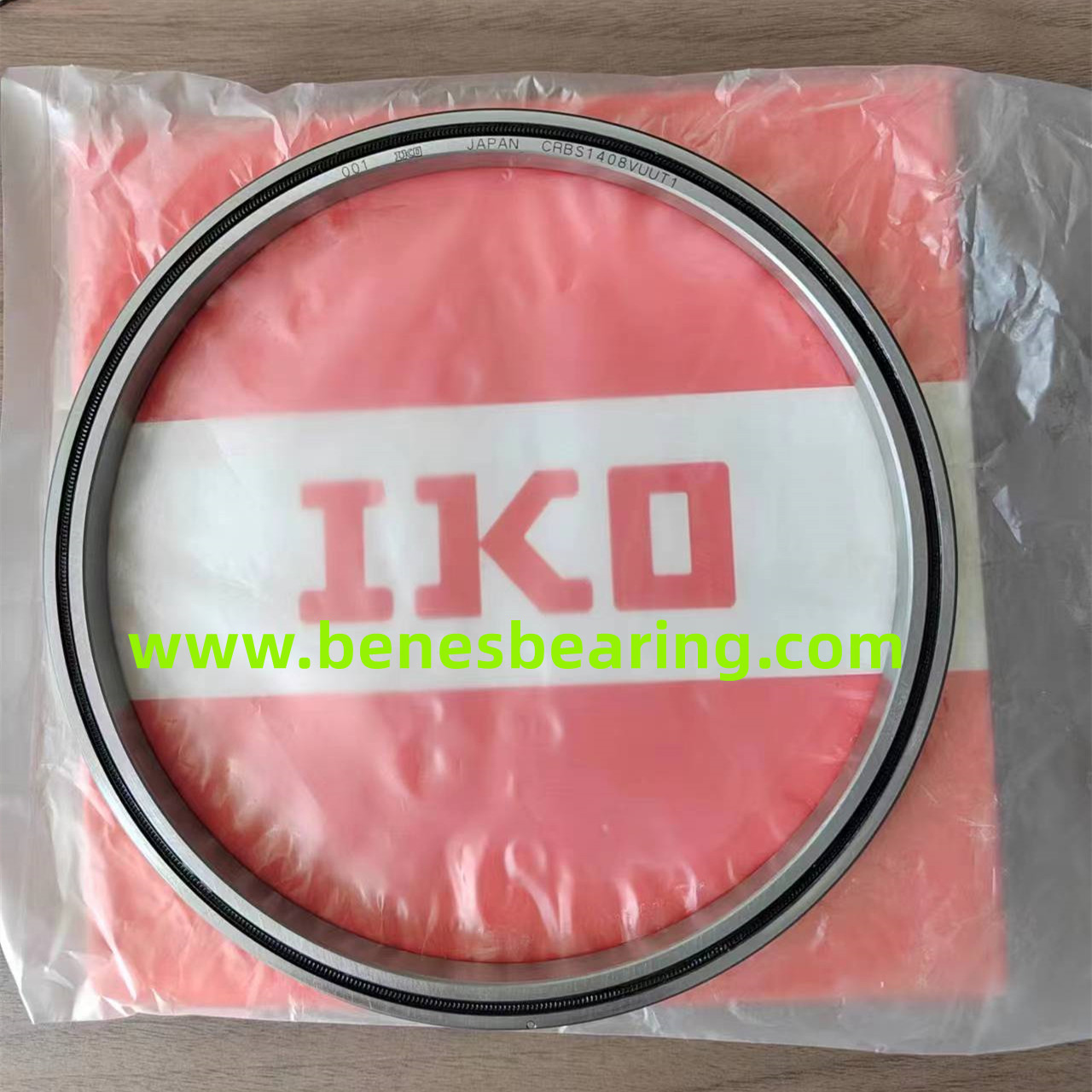

IKO CRBS1408 VUUT1 Slim Type Crossed Roller Bearing Made in Japan
Crossed roller bearings are designed to accommodate both radial, thrust and moment loads at the same time. These compact bearings feature rollers crossed at right angles between inner and outer rings.
Dimension(s):
Inside Diameter (d) = 140mm
Outside Diameter (D) = 156mm
Width (B) = 8mm
Radius (r) = 0.4mm
Mounting Dimension (dₐ) = 144mm
Mounting Dimension (Dₐ) = 151mm
Load Rating(s):
Basic Dynamic Load Rating (N) = 11700
Basic Static Load Rating (N) = 26800
Clearance:
Clearance Type = T1
Clearance value min (µ m) = -8
Clearance Value max (µ m) = 0
Operating Temperature: -20°c to +110°c
